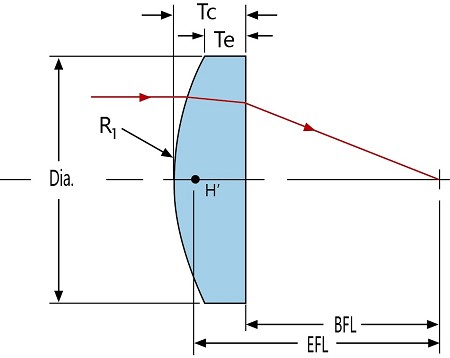

UV Fused Silica Plano Convex Lenses

MATERIAL UV Grade Fused Silica
DIAMETER TOLERANCE + 0.0 / – 0.1mm
THICKNESS TOLERANCE ± 0.2mm
SURFACE QUALITY 40/20
CENTRATION ≤ 3 arc MINS
FOCAL LENGTH ± 2%



CUSTOM SIZES
DIMENSIONS DIAMETERS 1mm TO > 300mm
COATINGS PLEASE SEE BELOW

Galvoptics are specialist suppliers of UV Fused Silica Plano Convex Stock optical lenses and also offer custom made UV fused silica Plano convex lenses.

We have a range of lenses available to purchase directly below using our online payment system, or alternatively we can create a custom built UV Fused Silica lens to match your specific requirements.  Speak to a member of our team on 01268 728077.

Need advice?

If you have any questions or need advice on this product please get in touch.

sales@galvoptics.co.uk +44 (0) 1268 728 077
Part No.DescriptionDiameterThicknessFocal LengthUnit PriceQuantity
L40-010-012 UNCOATED UV FUSED SILICA 10 4.4 12.5 £39.50
L40-010-025 UNCOATED UV FUSED SILICA 10 2.65 25 £39.50
L40-010-050 UNCOATED UV FUSED SILICA 10 2.55 50 £39.50
L40-012-025 UNCOATED UV FUSED SILICA 12.7 3.95 25 £41.50
L40-012-050 UNCOATED UV FUSED SILICA 12.7 2.9 50 £41.50
L40-012-100 UNCOATED UV FUSED SILICA 12.7 2.45 100 £41.50
L40-025-050 UNCOATED UV FUSED SILICA 25.4 5.85 50 £43.50
L40-025-100 UNCOATED UV FUSED SILICA 25.4 3.8 100 £43.50
L40-025-250 UNCOATED UV FUSED SILICA 25.4 2.7 250 £43.50
L40-004-005 UNCOATED UV FUSED SILICA 4 2.2 5 £39.50

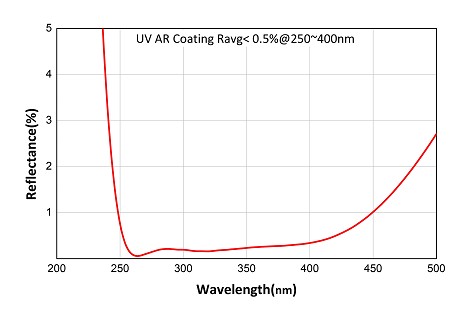

L40-004-005-UV AR COATED R<0.5% @ 250~400NM 4 2.2 5 £47.50
L40-010-012-UV AR COATED R<0.5% @ 250~400NM 10 4.4 12.5 £47.50
L40-010-025-UV AR COATED R<0.5% @ 250~400NM 10 2.65 25 £45.00
