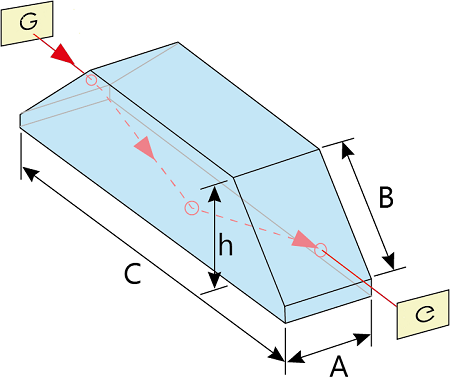

Dove Prisms can be used as image rotators. As light passes through the prism the image is rotated by 180°
| MATERIAL | N-BK7 GRADE A OPTICAL GLASS |
| DIMENSIONS | +0.0/-0.2mm |
| FLATNESS | λ/4 @ 632.8nm |
| SURFACE QUALITY | 60/40 |
| ANGLE TOLERANCE | ± 3 ARC minutes |
| COATING | SEE BELOW |
Dove Prisms can be used as image rotators. As light passes through the prism the image is rotated by 180°
If you have any questions or need advice on this product please get in touch.
sales@galvoptics.co.uk +44 (0) 1268 728 077| Part No. | Description | Dimensions | Specification | Unit Price | Quantity | |||
|---|---|---|---|---|---|---|---|---|
| P14-005 | 5MM DOVE PRISM | A=5 X B=7.07 X C=21.1 X H=5 | UNCOATED | £75.00 |
|
|||

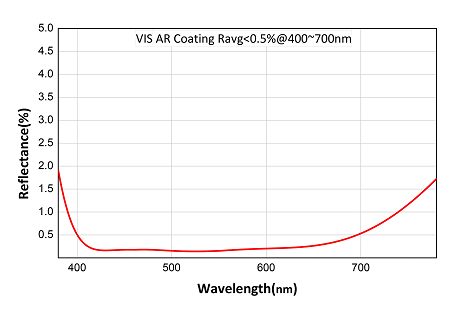

| P14-005-VIS | 5MM DOVE PRISM | A=5 X B=7.07 X C=21.1 X H=5 | VISIBLE AR COATED R<0.5% 400~700NM | £92.00 |
|
|||
| P14-010 | 10MM DOVE PRISM | A=10 X B=14.14 X C=42.3 X =10 | UNCOATED | £68.00 |
|
|||
| P14-010-VIS | 10MM DOVE PRISM | A=10 X B=14.14 X C=42.3 X =10 | VISIBLE AR COATED R<0.5% 400~700NM | £83.50 |
|
|||
| P14-015 | 15MM DOVE PRISM | A=15 X B=21.21 X C=63.4 X =15 | UNCOATED | £68.00 |
|
|||
| P14-015-VIS | 15MM DOVE PRISM | A=15 X B=21.21 X C=63.4 X =15 | VISIBLE AR COATED R<0.5% 400~700NM | £83.50 |
|
|||
| P14-020 | 20MM DOVE PRISM | A=20 X B=28.28 X C=80.0 X =20 | UNCOATED | £104.00 |
|
|||
| P14-020-VIS | 20MM DOVE PRISM | A=20 X B=28.28 X C=80.0 X =20 | VISIBLE AR COATED R<0.5% 400~700NM | £119.50 |
|
